AXE 1617 WHT
Facade Outline

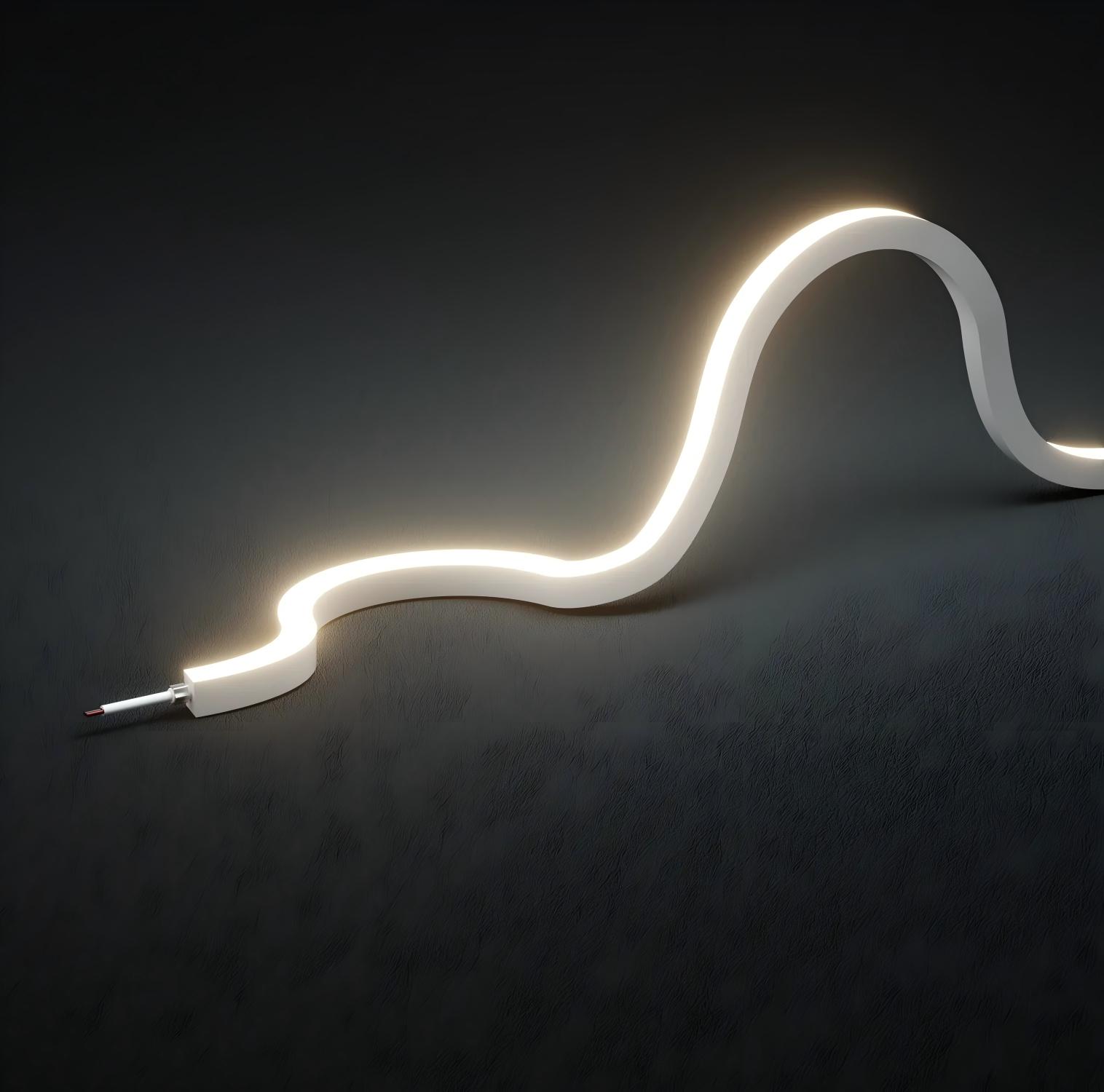

LEDLINE AXE 1617 WHT is a highly versatile, energy-efficient flexible LED strip suitable for wet locations. 3D bending, 110.4LM/W @3000K 9.6W, it is vertically and horizontally. It is designed to eliminate stress points and provide flawless illumination for complex organic architectural forms.
• CCT : 2700K, 3000K, 4000K
• Ra : ≥90
• LED MacAdam Ellipse(SDCM) : ≤3
• Bending Direction : 3D Bendable (Vertical & Horizontal Bending)
• LED Type : Sanan
• Standard Lumen Output: 1061 lm/m (@3000K, 9.6W/m)
• Efficacy: 110.4LM/W @3000K 9.6W
• Mounting : Aluminum Profile, Clips
• Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 9.6W/M (Constant Current)
• IP Rating : IP68 (Not for underwater application), IK10 with profile
• Dimension : 16mm(W) x 17mm(H)
• Height : 17mm
• Lens : Diffused Silicone
• Unit cut : 50mm
• Max running length : 11M
• Operating Temperature : -40℃ to 65℃
• Warranty : 5 Years
• Certification : UL, cUL, TÜV, CE, RoHS, REACH, CB
