The Physics of Curvature
Why "3D Bendable" Lighting Often Fails in the Field
Picture a grand hotel lobby featuring a stunning, fluid architectural ceiling. The designer has envisioned organic, sweeping curves of continuous light. The specification calls for "3D bendable LED neon."
The installation begins. The contractors push the flexible luminaire into the curved aluminum profiles. But at the tightest bends, things go wrong. The inner radius of the silicone bulges uncontrollably, refusing to sit flush. Worse, when bending sideways, the entire strip begins to twist and roll like a coiled snake.
A few weeks after the grand opening, the constant mechanical tension wins. The lighting strip literally pops out of its mounting clips, destroying the seamless aesthetic and, in outdoor applications, compromising the waterproof seal.
Why does a product labeled "flexible" fight so hard against being bent? The answer lies not in the lighting, but in the physics of mechanical stress.
The Anatomy of a Bend: Tension vs. Compression
To understand why ordinary 3D neon fails, we must look at what happens inside a material when it bends.
Whenever you bend a solid extrusion, two opposing physical forces occur simultaneously:
Tension: The outer edge of the curve is stretched.
Compression: The inner edge of the curve is squashed.

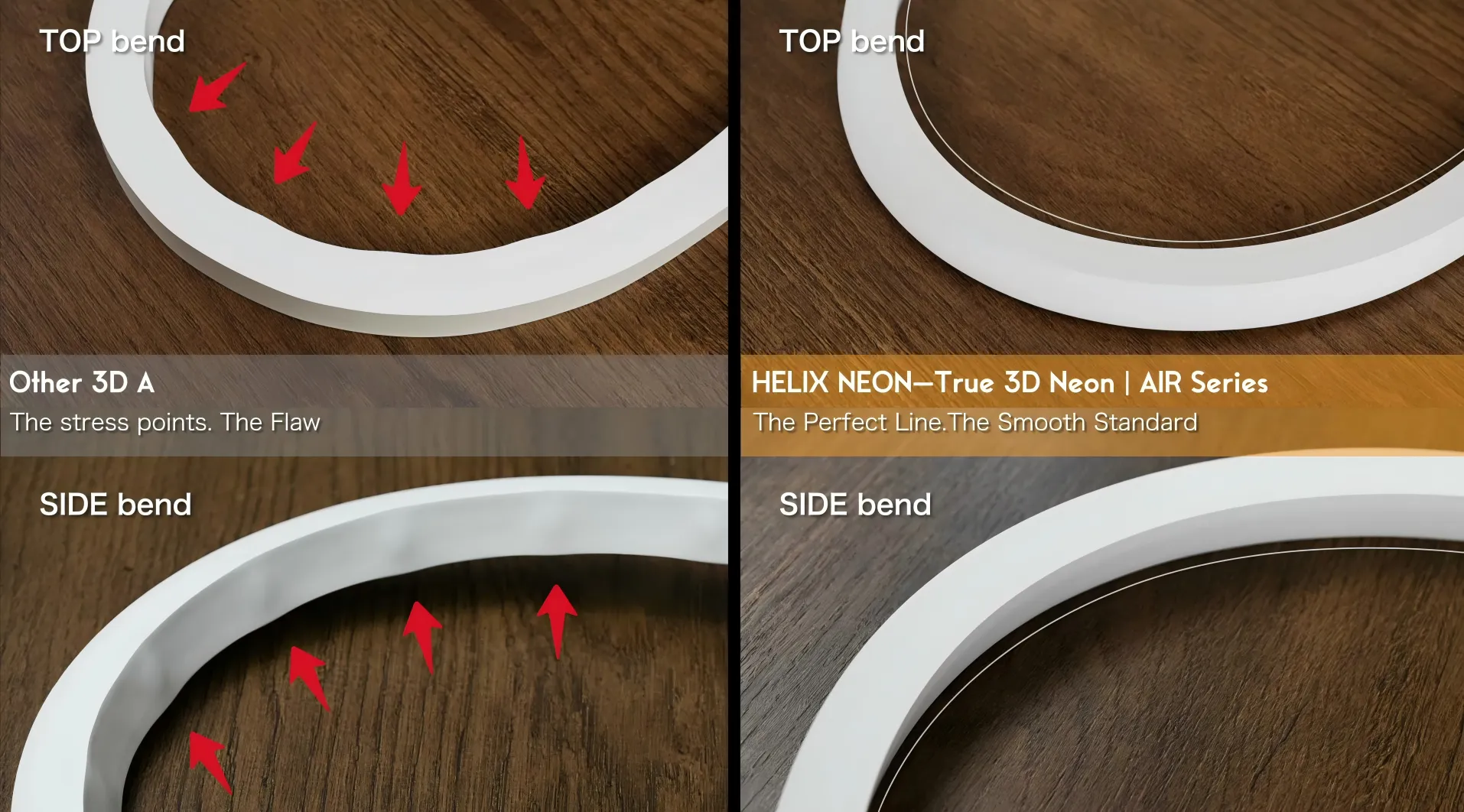

In standard 3D LED neon, the internal structure is essentially a solid block of silicone encapsulating a PCB (Printed Circuit Board). When forced into a tight bend, the compressed silicone on the inner radius has nowhere to go. It must displace. As a result, it forces its way outward, creating unsightly "bulges."
These bulges are highly problematic. They create severe weak points in the silicone, risk rupturing the outer skin, invite water ingress, and make a flush, seamless fit within a mounting profile impossible.
The "Rolling" Dilemma: Unwanted Torque

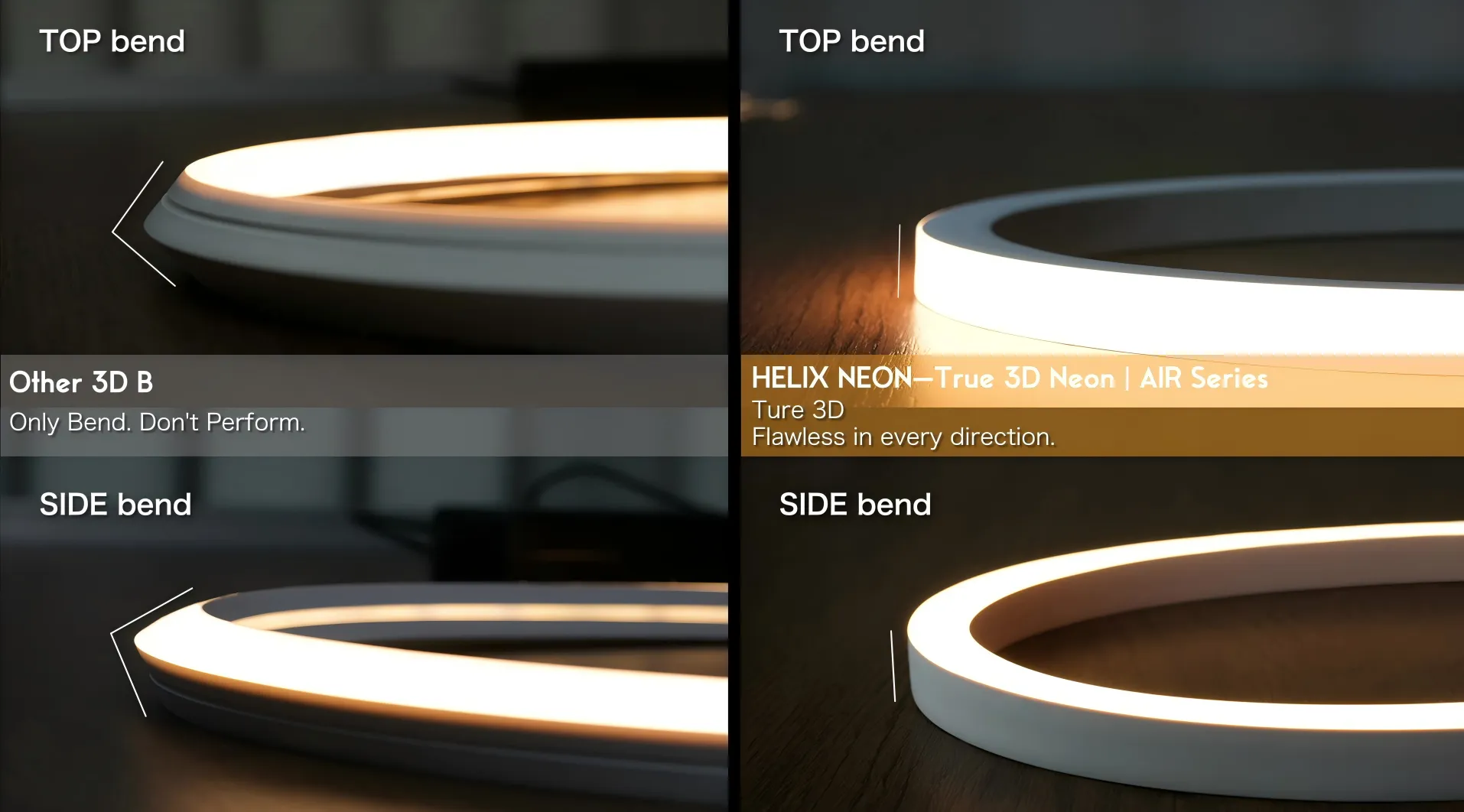

True 3D bending means a luminaire must bend smoothly on two axes: vertically (top-bend) and horizontally (side-bend).
However, poor internal geometry often causes a phenomenon known as "rolling." When you attempt to bend a standard strip sideways along a curved surface, the material naturally wants to twist along its longitudinal axis to relieve the internal stress.
This unwanted torque is the nemesis of mounting accessories. The twisting motion acts as a lever, constantly pulling against the mounting clips or aluminum channels. Over time, this unrelenting tension damages the clips, causing the light to detach and fall out of its housing.
Engineering the "Neutral Axis"
Solving this dilemma requires moving away from crude, solid-block silicone pouring and treating the luminaire as an engineered structural component.
To achieve flawless curvature, the extrusion must be designed around a Mechanically Neutral Axis. This means creating an internal architecture with precise relief zones. When the material is bent, these micro-voids and engineered backbones absorb the compression internally, allowing the external surface to remain perfectly smooth.
Furthermore, a balanced structural design ensures that when the material is pushed sideways, it stays strictly on its intended axis without twisting—a concept engineers call "Flat in Fact."
The JRLite Solution: HELIX Neon
At JRLite, we watched installation teams struggle with the flaws of standard 3D neon for years. We knew that for high-end architectural projects, a light that fights its mounting system is unacceptable.
This led to the development of our HELIX Neon Series—the redefinition of true 3D bending.
Instead of a solid block, HELIX is engineered with a proprietary Zero-Stress Internal Structure. By absorbing compression forces internally, HELIX completely eliminates surface bulging. It stays perfectly smooth and uniform in any bend, preserving its IP67/IP68 integrity and ensuring a seamless, flush fit into any profile.
More importantly, HELIX is mechanically balanced. It bends exactly where you want it to, without unwanted rolling or twisting. This "Flat in Fact" design translates to zero mechanical stress on the mounting accessories, ensuring long-term safety and drastically reducing installation time.
Because a brilliant lighting design shouldn't be ruined by poor mechanics. At JRLite, we engineer the structure so you can simply Light the Exceptional.
About the Column: The Mounting & Accessories series by JRLite explores the mechanical integration of architectural lighting, bridging the gap between brilliant design and flawless physical execution.
