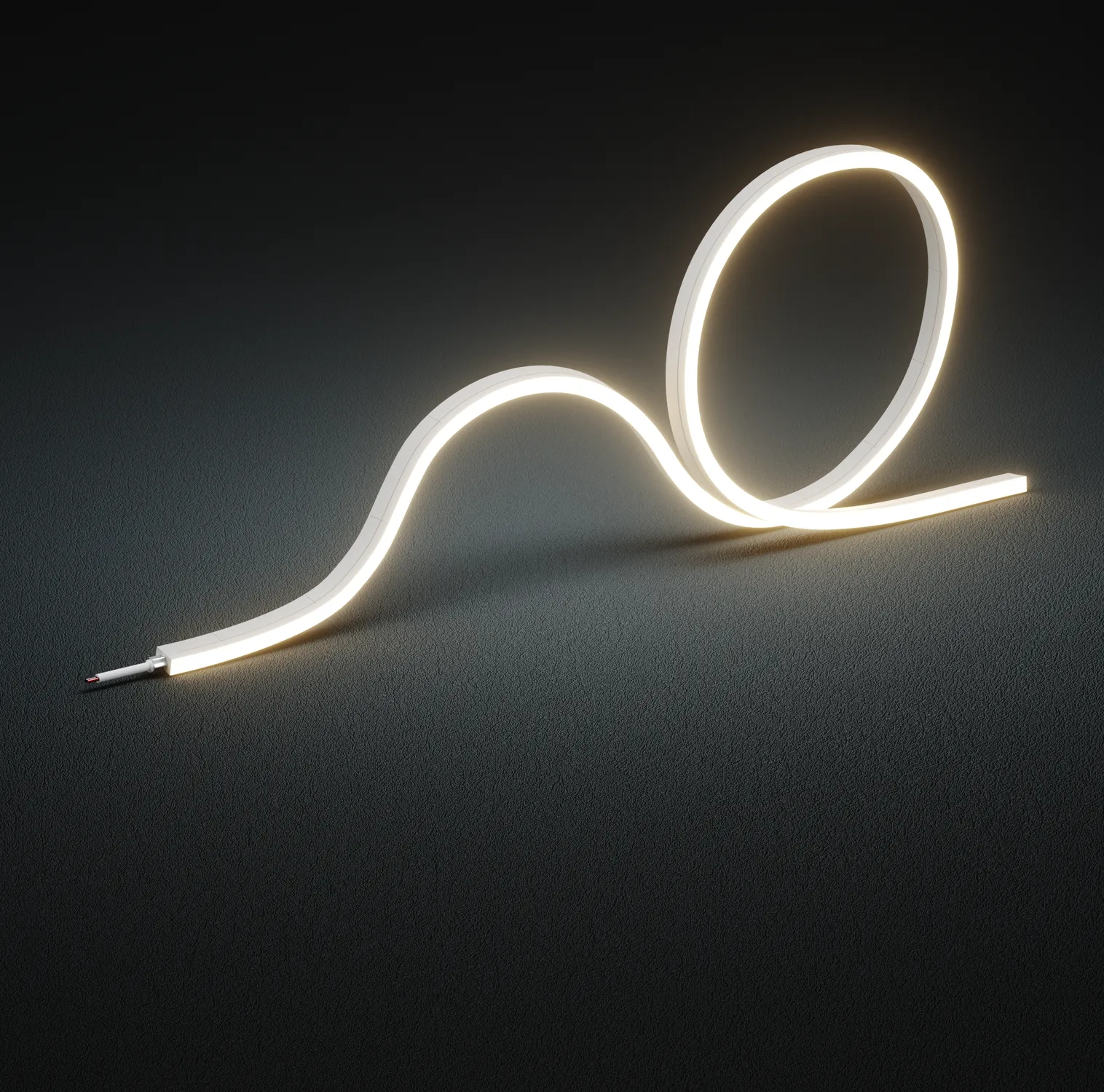

ACE 1220BS WHT
Large Size Neon
The ACE 1220BS WHT is an energy-efficient, side-bendable flexible LED luminaire engineered for wet locations. Designed to create massive, continuous architectural outlines, it boasts breakthrough super-long run technology—powering up to 20M from a single end (at 9.6W/m) with absolutely no voltage drop and solder-free seamless connections.
• CCT : 2700K, 3000K, 4000K
• Ra : ≥ 90
• MacAdam Ellipse(SDCM) : ≤3
• Bending Direction : Side Bendable
• LED Type : Sanan
• Standard Lumen Output : 831 lm/m (@3000K, 14.4W/m)
• Mounting : Aluminum Profile, Clips
• Input Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 9.6W/M & 14.4W/M
• IP Rating : IP68 (Not for underwater application)

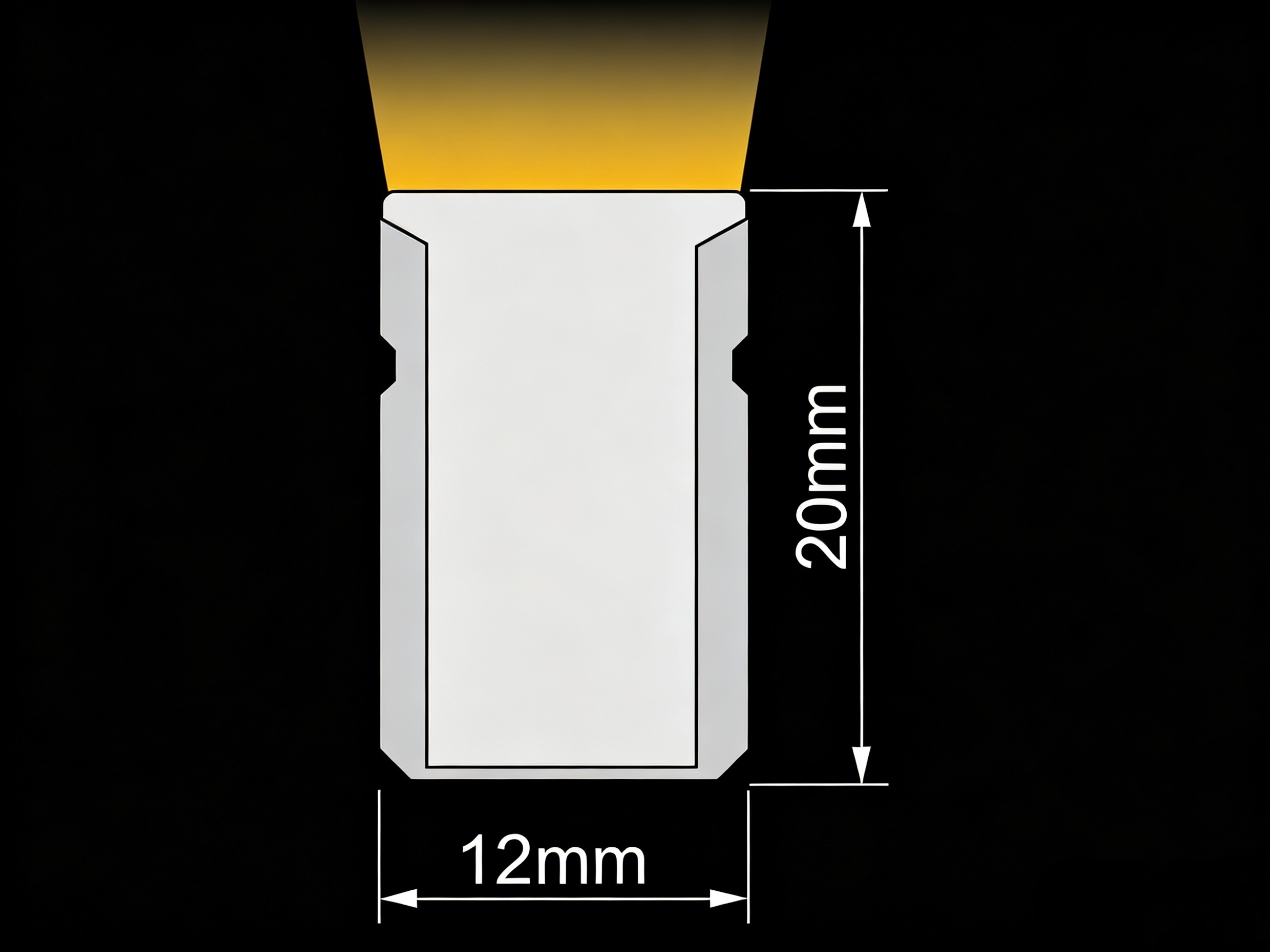

• Dimension : 12mm(W) x 20mm(H)
• Height : 20mm
• Lens : Diffused Silicone
• Operating Temperature : -40℃ to 65℃
• Sustainability : Installation-Friendly, UV & Chemical Resistant
• Unit Cut : 50mm
• Max running length : 20M for 9.6W (from one single end), 15M for 14.4W (from one single end)
• Warranty : 5 Years
• Certification : UL, cUL, CE, RoHS
